Execution Panel

Learn how to test your pipelines or capsules using the Execution Panel on the Digibee Integration Platform.

This feature was named "Test mode" until June 2023.

The Execution Panel allows you to test a pipeline or capsule in the test environment while designing the flow. It uses test values from the Globals, Accounts, Relationship, and Multi-Instance services.

This feature helps you validate implementation logic and debug the flow in real time, without needing to deploy it first.

Execution Panel overview

You can open the Execution Panel from the lower-left corner of the Canvas or by pressing Cmd (or Ctrl) + D.

The panel includes four tabs:

  • Payload: Input test data

  • Results: Review input, output and test results

  • Messages: Inspect each connector’s output

  • Logs: Track events and errors

Learn more about each tab:

Payload tab

In this tab, you can define the test payload used during execution. It allows you to:

  • Select a specific instance: When a pipeline is configured as multi-instance, the Multi-instance dropdown is displayed so you can choose the instance for the test. For more details, see the Multi-Instance documentation.

  • Save the payload: You can save a payload for later use. Click the save icon and assign a name to it. Saved payloads are specific to each pipeline or capsule and are not shared across different flows.

    • Once saved, the payloads appear in the Payloads column. You can Delete or Apply a payload. Saved payloads cannot be edited. If you make changes, you must save them as a new payload.

  • Format the JSON: For better readability, use the magic wand icon to automatically format the JSON.

When running an execution in a capsule, the Parameters column is displayed. There, you should input the parameters and account values according to the capsule’s configuration.

Results tab

Once the test is executed, the output appears in the Results tab, a read-only view of the pipeline’s input and output data. Here, you can:

  • Copy the JSON output to your clipboard.

  • Search specific elements in the JSON output using a JSONPath expression.

This tab is also particularly useful during test case execution, as any assertion failures are shown here for easier validation.

Messages tab

The Messages tab shows the execution result of each connector in the pipeline, up to 5,000 messages. Each connector receives the payload from the previous one, processes it based on its function, and generates a new payload in response.

  • List of messages: The message list includes the message name, which corresponds to the connector’s Step Name, and the connector’s execution time in milliseconds. You can also search by full or partial message name, or by a connector parameter.

  • Message preview: In the message preview, you can download the JSON output as a file, copy it to your clipboard, or use a JSONPath expression to filter specific elements in the JSON output.

Logs tab

The Logs tab contains information about the event logs generated during pipeline execution in the Execution Panel. In this tab, you can filter logs by type, copy any log message, and search for specific logs by entering part or all of the message content.

The log list displays the following details:

  • Log type: The classification of the log, indicated by an icon. Available types:

    • Info: Informational logs

    • Warning: Logs that indicate warnings

    • Error: Logs that capture errors during execution

  • Timestamp: The date and time the step was executed in the pipeline

  • Log message: The message content of each log

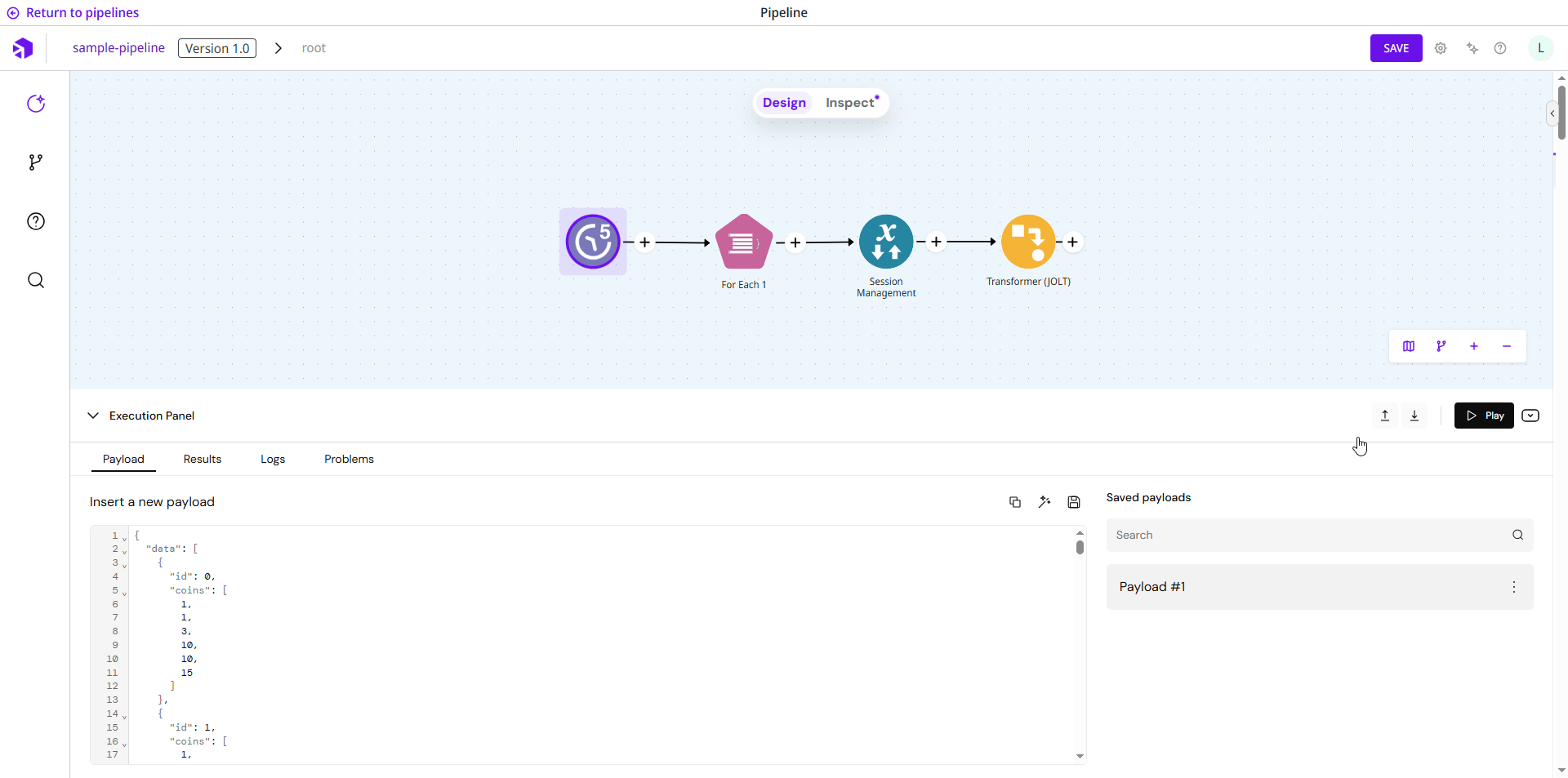

In addition to running tests, you can also import and export execution files directly from the panel.

Import

Click Import execution to upload a file with execution data.

Imported execution data appears in the panel, but currentFlowSpec and executedFlowSpec are not shown in the Canvas.

You can only re-run the execution if you're in the same pipeline it came from, and the original flow still exists.

Export

Click Export execution to download a file containing the pipeline configuration and execution data. Make sure all data is fully loaded before exporting to avoid missing information.

The exported file includes:

  • pipelineId and pipelineName

  • currentFlowSpec: Flow from Canvas as it was at the time of export

  • executedFlowSpec: Flow as it was at the time of execution

  • realm: Pipeline realm

  • execution: Payload, Output, Messages, and Logs

If no execution was run, only pipeline metadata is exported.

Executing the flow

By executing a flow, you can test and validate your pipeline or capsule to make sure it works as expected. You can execute the entire flow or just part of it, depending on your needs.

How to execute the entire flow

You can execute the entire flow using one of the following methods:

  • Press Cmd (Ctrl) + Enter.

  • Open the Execution panel and click Play.

  • Open the Execution panel, click the dropdown next to Play, and select Run pipeline or Run capsule.

Regardless of any selected connectors, these options will always execute the entire flow.

How to execute part of the flow

To execute a specific part of the flow:

Step 1: Select the connectors

Choose the connectors you want to execute using one of these methods:

  • Hold Shift and drag the mouse over the desired connectors.

  • Hold Shift and click each connector individually.

For a selection to be valid, the chosen connectors must be connected and in sequence. Skipping a connector in the middle of the sequence will invalidate the selection.

Step 2: Execute the selection

After selecting the connectors, you can execute the flow in two ways:

  • Press Cmd (Ctrl) + Shift + Enter.

  • Open the Execution panel, click the dropdown next to Play, and select Run selected steps.

How to execute from a specific step

You can start the pipeline execution from any chosen step, ensuring that all subsequent steps in the flow are executed. To do this, follow these steps:

  1. Click the connector where you want the execution to begin.

  2. Open the Execution panel.

  3. Click the dropdown next to Play and select Run from step. You can also use the shortcut Ctrl + Alt + Enter for Windows or Cmd (⌘) + Option (⌥) + Enter for macOS.

The pipeline is then executed from the selected step and continues with the remaining flow.

Additional information

Below you will find some important details about the Execution panel and useful keyboard shortcuts.

Execution panel inactivity

If you don’t access the Execution panel for 24 hours, it will become inactive. When you reopen the Canvas, it may take up to 3 minutes for the Execution panel to become active again.

Keyboard shortcuts

macOS

  • ⌘ + D: Open or close the Execution Panel

  • ⌘ + Enter: Execute the entire flow ⌘ + Shift + Enter: Execute the selected connectors

  • ⌘ + ⌥ + Enter: Execute from the selected step

Windows

  • Ctrl + D: Open or close the Execution Panel

  • Ctrl + Enter: Execute the entire flow

  • Ctrl + Shift + Enter: Execute the selected connectors

  • Ctrl + Alt + Enter: Execute from the selected step
