# Notification model in event-driven integrations
This document describes an implementation suggestion of a **centralized notification mechanism** for event-driven integrations on the Digibee Integration Platform. The goal is to ensure that important events, especially errors, are communicated in a reliable and scalable way, allowing systems and users to respond appropriately.
{% hint style="info" %}
For more details on event-driven integrations on the Digibee Integration Platform, read the following articles:
* [Event-driven architecture](/documentation/resources/best-practices/event-oriented-architecture.md)
* [How to use Event-Driven Architecture on the Digibee Integration Platform](/documentation/resources/use-cases/how-to-use-event-driven-architecture-on-the-digibee-integration-platform.md)
* [Error handling strategy in event-driven integrations](/documentation/resources/use-cases/error-handling-strategy-in-event-driven-integrations.md)
{% endhint %}
## Scenario
In an asynchronous integration environment, events can be triggered by multiple systems, requiring a robust mechanism to notify consumer systems or end users. The notification model proposed in this document addresses these challenges by considering:
* **Low latency** upon delivery of the notification.
* **Delivery guarantee** with resend attempts.
* **Flexibility** for sending via different channels (email, webhook, queue, and so on).
* **Observability** for event tracking.
* **Error handling** with centralized repository and predefined rules.

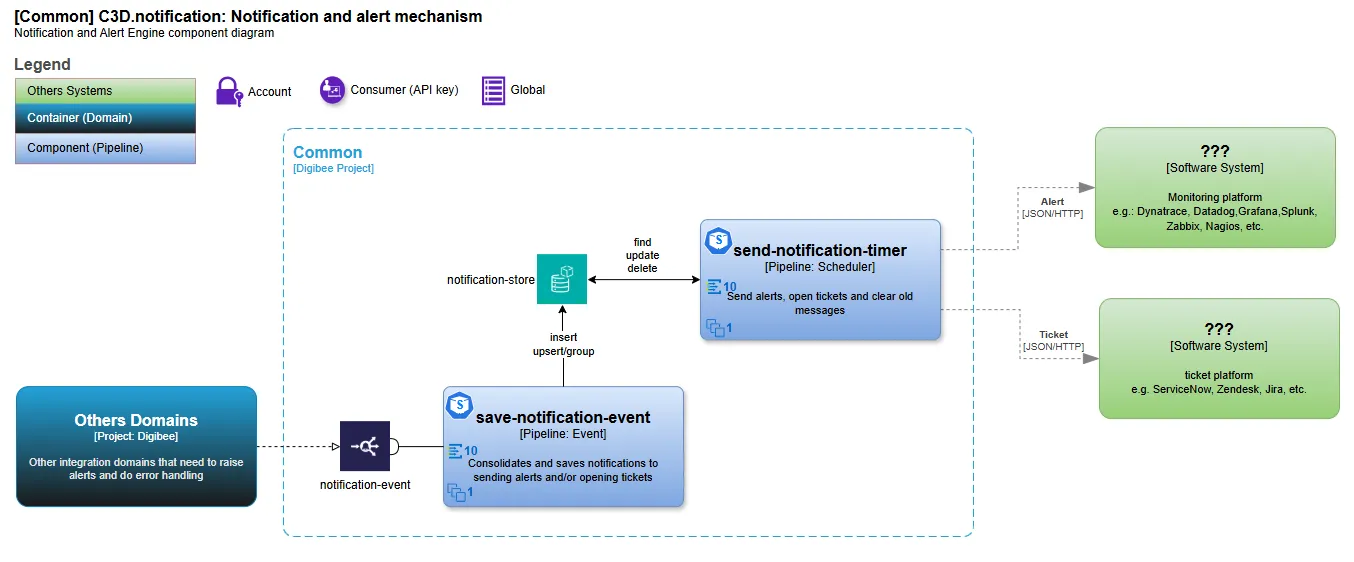

## Architecture
The implementation of the notification model follows an event-based architecture, where:
1. **Event trigger**: Any business pipeline can trigger the pipeline `save-notification-event` via Digibee event called `notification-event`.
2. **Notification storage**: The pipeline `save-notification-event` inserts or updates record in the `notification-store`` `**`Object Store`**, ensuring that duplicate messages are not stored within the defined time interval.
3. **Processing and sending the notification**: A second pipeline, `send-notification-timer`, periodically consults the records stored in the `notification-store` and sends notifications based on established rules.
4. **Delivery to destination**: Notifications are sent to your preferred systems, such as alert systems (Dynatrace, Datadog, Grafana, email) or ticket opening systems (ServiceNow, Zendesk, Jira).

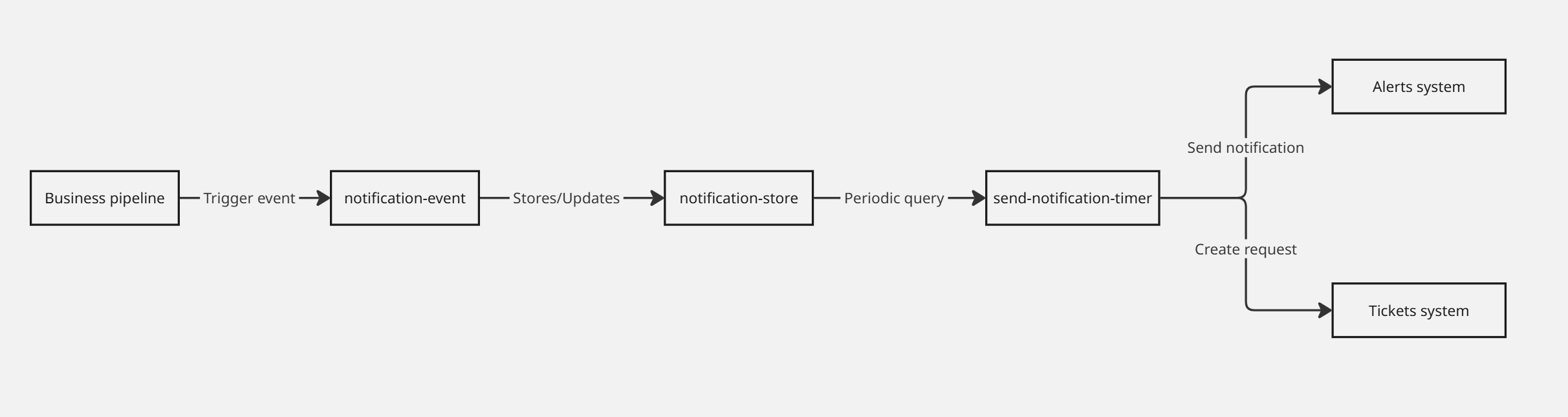

## Flow diagrams
## Implementation at Digibee
### Pipeline configuration
1. **`save-notification-event` pipeline**:
* Receives an event `notification-event.`
* Checks if the message already exists in the `notification-store.`
* Inserts a new record or updates an existing one, increasing the occurrence counter.
* Defines the waiting time before sending the alert.
2. **`send-notification-timer` pipeline**:
* Retrieves records from `notification-store` paging the search every 500 records.
* Applies criticality rules to define the destination of the notification.
* Calculates shipping time based on `alertWaitTime.`
* Sends the notification to the appropriate system.
### Example of payloads
Event entry notification-event (Example for ServiceNow and Dynatrace)
```json
{
"titleError": "Example: Failure of integration of products",
"message":"code of error + message",
"pipelineName":"name do pipeline",
"lastPipelineKey": "pipeline key",
"stageIntegracao": "Which stage do flow occurred the error",
"dataHora": "timestamp",
"criticality": 1,
"tempoEsperaAlerta": "1",
"servicenow":{
"variables":{
"assignment_group": "",
"u_type_closure": "",
"urgency": "",
"cmdb_ci": "",
"business_service": "",
"subcategory": ""
}
},
"dynatrace":{
"startTime": "",
"properties":{
"step": ""
}
}
}
```
Storage in notification-store
```json
{
"message":"code of error + message",
"pipelineName":"name do pipeline",
"stageIntegracao": "Which stage do flow occurred the error",
"titleError": "Example: Failure of integration of products",
"lastPipelineKey": "pipeline key",
"dataHora": "timestamp",
"criticality": 1,
"qtdeOcorrencias": 1,
"limiteAlert": "calculated",
"servicenow":{
"variables":{
"assignment_group": "",
"u_type_closure": "",
"urgency": "",
"cmdb_ci": "",
"business_service": "",
"subcategory": ""
}
},
"dynatrace": {
"startTime": "",
"properties": {
"step": ""
}
}
}
```
### Pipeline spec examples
Trigger: Scheduler | Pipeline name: send-notification-timer
```json
{
"meta": {
"e8e9e28e-c047-4591-9ad9-324dd4f7e425": {
"position": {
"x": 195,
"y": 75
}
},
"755c8909-8a1f-4b98-88c2-ae693fbb3ef5": {
"position": {
"x": 405,
"y": 75
}
},
"dcc24676-159c-4a93-aa9e-931d13ce1b3c": {
"position": {
"x": 600,
"y": 75
}
},
"0718a765-dcf7-42df-b959-a04b024f834d": {
"position": {
"x": 795,
"y": 75
}
},
"b185a262-9813-4bde-8287-b8cf500f3a62": {
"position": {
"x": 1245,
"y": 0
}
},
"9d2331d2-7842-494b-9be1-c6a4f2ce52e7": {
"position": {
"x": 1455,
"y": 0
}
},
"d7be81fd-d35f-4ee9-a56d-2c1e10989bbc": {
"position": {
"x": 1650,
"y": 0
}
},
"95792095-5b05-4d54-b65c-6b329884d159": {
"position": {
"x": 1845,
"y": 0
}
},
"8a90a7be-7ae7-4baa-87a3-ef91b395c8d6": {
"position": {
"x": 2055,
"y": 0
}
},
"158d4027-f8c9-4274-a5bc-45064f6a81ed": {
"position": {
"x": 1245,
"y": 150
}
},
"eaf2e26f-a933-4f92-9f95-2caec4c69f04": {
"position": {
"x": 1455,
"y": 150
}
},
"6265f91e-daaf-4424-ad9e-f7af9aa8c63d": {
"position": {
"x": 0,
"y": 225
}
}
},
"flowSpec": {
"disconnected-root:2bc39e21-f496-451b-9649-76f2ff6074e7": [
{
"type": "connector",
"name": "object-store-connector",
"accountLabel": "dgb-internal-object-store-account",
"stepName": "Delete notification-store +7 days",
"params": {
"operation": "DELETE_BY_QUERY",
"objectStore": "notification-store",
"query": "{\n \"dataHora\": { $lt: {{ SUMDATE(NOW(), \"DAY\", -7) }} }\n}",
"unique": true,
"isolated": false,
"upsert": false,
"failOnError": false
},
"id": "e8e9e28e-c047-4591-9ad9-324dd4f7e425"
},
{
"type": "connector",
"name": "log-connector",
"stepName": "Delete notification-store +7 days",
"params": {
"logLevel": "INFO",
"message": "Delete notification-store +7 days: {{ message.$ }}"
},
"id": "755c8909-8a1f-4b98-88c2-ae693fbb3ef5"
},
{
"type": "connector",
"name": "object-store-connector",
"accountLabel": "dgb-internal-object-store-account",
"stepName": "Find notification-store",
"params": {
"operation": "FIND_BY_QUERY",
"objectStore": "notification-store",
"query": "{\n \"limitAlert\": { $lt: {{ NOW() }} }\n}",
"limit": "500",
"skip": "0",
"sort": "{}",
"unique": true,
"isolated": false,
"upsert": false,
"failOnError": false
},
"id": "dcc24676-159c-4a93-aa9e-931d13ce1b3c"
},
{
"type": "choice",
"stepName": "Choice",
"when": [
{
"target": "Success notification-store (1)",
"jsonPath": "$.[?(@.rowCount > 0)]",
"__documentation__": ""
}
],
"otherwise": "Fail Find notificarion-store (1)",
"id": "0718a765-dcf7-42df-b959-a04b024f834d"
}
],
"Success notification-store (1)": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Success Find notification-store",
"params": {
"logLevel": "INFO",
"message": "Success Find notification-store"
},
"id": "b185a262-9813-4bde-8287-b8cf500f3a62"
},
{
"type": "transformer",
"stepName": "Transformer (JOLT)",
"transformSpec": [
{
"operation": "shift",
"spec": {
"data": [
"&",
"temp"
]
}
},
{
"operation": "shift",
"spec": {
"data": {
"*": {
"criticidade": {
"1|2": {
"@2": "data[]"
}
}
}
},
"temp": {
"*": {
"criticidade": {
"3": {
"@2": [
"temp[]",
"temp[]"
]
}
}
}
}
}
},
{
"operation": "shift",
"spec": {
"data": "&",
"temp": {
"*": "data[]"
}
}
},
{
"operation": "shift",
"spec": {
"data": [
"data",
"data2"
]
}
},
{
"operation": "shift",
"spec": {
"data": {
"*": {
"$": "data[#2].seq",
"tituloErro": "data[#2].&",
"mensagem": "data[#2].&",
"pipelineName": "data[#2].&",
"lastPipelineKey": "data[#2].&",
"etapaIntegracao": "data[#2].&",
"dataHora": "data[#2].&",
"criticidade": "data[#2].&",
"tempoEsperaAlerta": "data[#2].&",
"servicenow": "data[#2].&",
"dynatrace": "data[#2].&",
"limitAlert": "data[#2].&",
"qtdeOcorrencias": "data[#2].&",
"_oId": "data[#2].&"
}
}
}
},
{
"operation": "modify-overwrite-beta",
"spec": {
"data": {
"*": {
"seq": "=toInteger"
}
}
}
}
],
"id": "9d2331d2-7842-494b-9be1-c6a4f2ce52e7"
},
{
"type": "connector",
"name": "json-transformer-connector",
"stepName": "JSON Transformer",
"params": {
"actions": "[{\"desc\":\"Description\",\"type\":\"edit\",\"props\":[{\"root\":false,\"path\":\"data\",\"keyValueStringEdit\":\"{\\\"criticidade\\\":\\\"{{ IF(EQUALTO(item.criticidade,3),IF(EQUALTO(MOD(item.seq,2),0.0),2,1),item.criticidade) }}\\\"}\",\"keyRemove\":\"\",\"keyValueToRemovePropWithCondition\":\"\"}]},{\"desc\":\"Description\",\"type\":\"remove\",\"props\":[{\"root\":false,\"path\":\"data\",\"keyRemove\":[\"seq\"],\"keyValueToRemovePropWithCondition\":\"\"}]}]",
"failOnError": false
},
"id": "d7be81fd-d35f-4ee9-a56d-2c1e10989bbc"
},
{
"type": "session-management",
"stepName": "Put data",
"operation": "PUT",
"sessionType": "LOCAL",
"scoped": false,
"fields": [
"data"
],
"id": "95792095-5b05-4d54-b65c-6b329884d159"
},
{
"type": "connector",
"name": "for-each-connector",
"stepName": "For Each data",
"params": {
"jsonPath": "$.data",
"itemIdentifier": "",
"parallel": false,
"failOnError": false,
"onProcess": "8a90a7be-7ae7-4baa-87a3-ef91b395c8d6-onProcessTrack",
"onException": "8a90a7be-7ae7-4baa-87a3-ef91b395c8d6-onExceptionTrack"
},
"id": "8a90a7be-7ae7-4baa-87a3-ef91b395c8d6"
}
],
"8a90a7be-7ae7-4baa-87a3-ef91b395c8d6-onProcessTrack": [
{
"name": "json-generator-connector",
"type": "connector",
"stepName": "request",
"params": {
"json": "{\n \"request\": {{ message.$ }},\n \"_oId\": {{ message._oId }}\n}",
"failOnError": false
},
"id": "c8877f16-e81e-4a9f-8cdf-dfc9d361503b"
},
{
"type": "session-management",
"stepName": "Put _oId",
"operation": "PUT",
"sessionType": "LOCAL",
"scoped": false,
"fields": [
"_oId"
],
"id": "f1cb864a-e929-40f9-8db9-53769bec0e5c"
},
{
"type": "connector",
"name": "block-execution-connector",
"stepName": "Send Customer Sistem",
"params": {
"onProcess": "290da7bf-fbab-4c42-8c1e-d5739b0c154a-onProcessTrack",
"onException": "290da7bf-fbab-4c42-8c1e-d5739b0c154a-onExceptionTrack"
},
"id": "290da7bf-fbab-4c42-8c1e-d5739b0c154a",
"description": "Block for to send the request for ServiceNow or Dynatrace"
},
{
"type": "choice",
"stepName": "Choice",
"when": [
{
"target": "Success Send",
"jsonPath": "$.[?(@.success == true)]",
"__documentation__": ""
}
],
"otherwise": "Fail Send ServiceNow|Dynatrace (1)",
"id": "dc02a67b-ae79-4f35-8f5a-3972d542ce1a"
}
],
"290da7bf-fbab-4c42-8c1e-d5739b0c154a-onProcessTrack": [
{
"type": "choice",
"stepName": "Choice",
"when": [
{
"target": "Criticidade 1",
"jsonPath": "$.[?(@.request.criticidade == 1)]",
"__documentation__": ""
}
],
"otherwise": "Criticidade 2",
"id": "0458512a-0acf-4ed6-b057-b57ba665a845"
}
],
"Criticidade 1": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Sistem 1",
"params": {
"logLevel": "INFO",
"message": "Sistem 1|Criticidade: {{ message.request.criticidade }}"
},
"id": "0c0bc38a-27de-4a33-8f42-9159ea86a3cb"
}
],
"Criticidade 2": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Sistem 2",
"params": {
"logLevel": "INFO",
"message": "Sistem 2|Criticidade: {{ message.request.criticidade }}"
},
"id": "199422c1-e293-412d-aaa0-0a7fbd69e81c"
}
],
"Success Send": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Success Sent Sistem",
"params": {
"logLevel": "INFO",
"message": "Success Sent Sistem"
},
"id": "a652992f-690a-4c17-a5e9-be2d93c3b87e"
},
{
"type": "session-management",
"stepName": "Get _oId",
"operation": "GET",
"sessionType": "LOCAL",
"scoped": false,
"fields": [
"_oId"
],
"id": "1176936e-5a03-4bcb-a0ce-1832b6392159"
},
{
"type": "connector",
"name": "object-store-connector",
"accountLabel": "dgb-internal-object-store-account",
"stepName": "Delete notification-store",
"params": {
"operation": "DELETE",
"objectStore": "notification-store",
"objectId": "{{ message._oId }}",
"unique": true,
"isolated": false,
"upsert": false,
"failOnError": false
},
"id": "a1ade107-bb49-45c4-b945-7a014b7278c9"
},
{
"type": "choice",
"stepName": "Choice",
"when": [
{
"target": "Success Delete ObjStore (1)",
"jsonPath": "$.[?(@.updateCount > 0)]",
"__documentation__": ""
}
],
"otherwise": "Fail Delete ObjStore (1)",
"id": "a3a527cc-2b8c-4fca-b7e1-827818b7e803"
}
],
"Success Delete ObjStore (1)": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Success Delete ObjStore",
"params": {
"logLevel": "INFO",
"message": "Success Delete ObjStore"
},
"id": "ca9d769c-25a0-4c17-b82f-d53a29f0d332"
},
{
"name": "json-generator-connector",
"type": "connector",
"stepName": "success true",
"params": {
"json": "{\n \"success\": true\n}",
"failOnError": false
},
"id": "b797fdb1-9a57-4840-821c-a24a623fbfe8"
}
],
"Fail Delete ObjStore (1)": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Fail Delete ObjStore",
"params": {
"logLevel": "ERROR",
"message": "Fail Delete ObjStore {{ message.$ }}"
},
"id": "ac4b8a02-51d9-41d4-97ab-4d04728bfafb"
},
{
"name": "json-generator-connector",
"type": "connector",
"stepName": "success true",
"params": {
"json": "{\n \"success\": true\n}",
"failOnError": false
},
"id": "af7d02b7-1e08-4ee6-823a-94146c0f6945"
}
],
"Fail Send ServiceNow|Dynatrace (1)": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Fail Sent ServiceNow/Dynatrace",
"params": {
"logLevel": "ERROR",
"message": "Fail Sent ServiceNow/Dynatrace"
},
"id": "f6171366-3394-4628-a349-bb1ffe373814"
},
{
"name": "json-generator-connector",
"type": "connector",
"stepName": "success false",
"params": {
"json": "{\n \"success\": false\n}",
"failOnError": false
},
"id": "719e5f44-744d-4263-af9f-ad4422be6a83"
}
],
"8a90a7be-7ae7-4baa-87a3-ef91b395c8d6-onExceptionTrack": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Error For Each",
"params": {
"logLevel": "ERROR",
"message": "Error For Each {{ message.$ }}"
},
"id": "6d5ac53a-58f4-4369-a6b5-0b67188f39c3"
}
],
"Fail Find notificarion-store (1)": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Not Found notification-store",
"params": {
"logLevel": "WARN",
"message": "Not Found notification-store"
},
"id": "158d4027-f8c9-4274-a5bc-45064f6a81ed"
},
{
"name": "json-generator-connector",
"type": "connector",
"stepName": "JSON Generator",
"params": {
"json": "{\n \"message\": \"Registers not found in notification-store.\",\n \"dateTime\": {{ FORMATDATE(NOW(),\"timestamp\",\"dd/MM/yyyy HH:mm:ss\",\"pt-BR\",\"GMT-3\") }}\n}",
"failOnError": false
},
"id": "eaf2e26f-a933-4f92-9f95-2caec4c69f04"
}
],
"disconnected-root:3f84c991-d096-4afd-9283-8a87a2e1cddb": [
{
"name": "json-generator-connector",
"type": "connector",
"stepName": "Find notification-store",
"params": {
"json": "{\n \"data\": [\n {\n \"tituloErro\": \"Exemplo: Falha de integração de produtos\",\n \"mensagem\": \"código de erro + mensagem\",\n \"pipelineName\": \"nome do pipeline\",\n \"lastPipelineKey\": \"pipeline key\",\n \"etapaIntegracao\": \"Qual etapa do fluxo ocorreu o erro\",\n \"dataHora\": 1692020829906,\n \"criticidade\": 1,\n \"tempoEsperaAlerta\": 1,\n \"servicenow\": {\n \"variables\": {\n \"assignment_group\": \"\",\n \"u_type_closure\": \"\",\n \"urgency\": \"\",\n \"cmdb_ci\": \"\",\n \"business_service\": \"\",\n \"subcategory\": \"\"\n }\n },\n \"dynatrace\": {\n \"timeout\": \"\",\n \"properties\": {\n \"step\": \"\"\n }\n },\n \"limitAlert\": 1692024429906,\n \"qtdeOcorrencias\": 16,\n \"_oId\": \"7d874ba1-7dd4-4880-8afb-de041b8ef649\"\n },\n {\n \"tituloErro\": \"Exemplo: Falha de integração de produtos\",\n \"mensagem\": \"código de erro + mensagem\",\n \"pipelineName\": \"nome do pipeline\",\n \"lastPipelineKey\": \"pipeline key\",\n \"etapaIntegracao\": \"Qual etapa do fluxo ocorreu o erro\",\n \"dataHora\": 1692020829906,\n \"criticidade\": 3,\n \"tempoEsperaAlerta\": 1,\n \"servicenow\": {\n \"variables\": {\n \"assignment_group\": \"\",\n \"u_type_closure\": \"\",\n \"urgency\": \"\",\n \"cmdb_ci\": \"\",\n \"business_service\": \"\",\n \"subcategory\": \"\"\n }\n },\n \"dynatrace\": {\n \"timeout\": \"\",\n \"properties\": {\n \"step\": \"\"\n }\n },\n \"limitAlert\": 1692024429906,\n \"qtdeOcorrencias\": 16,\n \"_oId\": \"7d874ba1-7dd4-4880-8afb-de041b8ef649\"\n },\n {\n \"tituloErro\": \"Exemplo: Falha de integração de produtos\",\n \"mensagem\": \"código de erro + mensagem\",\n \"pipelineName\": \"nome do pipeline\",\n \"lastPipelineKey\": \"pipeline key\",\n \"etapaIntegracao\": \"Qual etapa do fluxo ocorreu o erro\",\n \"dataHora\": 1692020829906,\n \"criticidade\": 3,\n \"tempoEsperaAlerta\": 1,\n \"servicenow\": {\n \"variables\": {\n \"assignment_group\": \"\",\n \"u_type_closure\": \"\",\n \"urgency\": \"\",\n \"cmdb_ci\": \"\",\n \"business_service\": \"\",\n \"subcategory\": \"\"\n }\n },\n \"dynatrace\": {\n \"timeout\": \"\",\n \"properties\": {\n \"step\": \"\"\n }\n },\n \"limitAlert\": 1692024429906,\n \"qtdeOcorrencias\": 16,\n \"_oId\": \"7d874ba1-7dd4-4880-8afb-de041b8ef649\"\n }\n ],\n \"rowCount\": 3\n}",
"failOnError": false
},
"id": "6265f91e-daaf-4424-ad9e-f7af9aa8c63d",
"__documentation__": ""
}
]
}
}
```
Trigger: Event | Event: notification-event
```json
{
"meta": {
"634e4658-0bf8-4d51-a2f0-9f49b1773d21": {
"position": {
"x": 195,
"y": 75
}
},
"0923c0da-1662-4ed8-a90d-62b1c64bf45a": {
"position": {
"x": 400,
"y": 75
}
},
"a0fba1b5-66a7-4d85-b19b-673063d528db": {
"position": {
"x": 600,
"y": 75
}
},
"419107c2-aa79-4c11-80a1-b6d032824659": {
"position": {
"x": 800,
"y": 75
}
},
"1a914487-be66-4c4f-8268-d20476c33d37": {
"position": {
"x": 1000,
"y": 75
}
},
"6cd53565-b6c5-4fe7-945d-5eaf21287072": {
"position": {
"x": 1450,
"y": 0
}
},
"93a0465b-a939-40a2-af3e-e5b32bda3061": {
"position": {
"x": 1650,
"y": 0
}
},
"b5f6d727-72ea-4272-9c2c-6cc0cde483b9": {
"position": {
"x": 1850,
"y": 0
}
},
"4015ccfe-df27-4554-8cdc-4fc5311f8bd3": {
"position": {
"x": 2050,
"y": 0
}
},
"4f6fc79d-72f9-41e9-bfa5-1f8a81d4850b": {
"position": {
"x": 2250,
"y": 0
}
},
"65ecf8db-6aaa-4409-b032-57a1450c69a8": {
"position": {
"x": 2450,
"y": 0
}
},
"a948890b-e52a-4bee-854f-294a9f14528d": {
"position": {
"x": 1450,
"y": 150
}
},
"0d4065ac-2801-4c50-94f9-c6224d4fc272": {
"position": {
"x": 1650,
"y": 150
}
},
"9ddf92c8-b8c4-4599-8238-8aea39d8ae9a": {
"position": {
"x": 1850,
"y": 150
}
},
"15714b58-3223-47bc-b0a2-acdbe7f9f00c": {
"position": {
"x": 2050,
"y": 150
}
},
"5415eeb8-1242-49d9-b95c-e192f7ea2e9b": {
"position": {
"x": 2250,
"y": 150
}
},
"614f85c5-4137-4a93-926e-89b8c0238cc3": {
"position": {
"x": 2450,
"y": 150
}
},
"78a22097-4485-4810-aa04-fc488568751c": {
"position": {
"x": 0,
"y": 225
}
}
},
"flowSpec": {
"disconnected-root:d43c4651-80c1-4594-9f64-91ff52edc963": [
{
"type": "transformer",
"stepName": "Transformer (JOLT)",
"transformSpec": [
{
"operation": "shift",
"spec": {
"*": "payload.&"
}
},
{
"operation": "modify-overwrite-beta",
"spec": {
"payload": {
"limitAlert": 0,
"qtdeOcorrencias": 1
}
}
}
],
"id": "634e4658-0bf8-4d51-a2f0-9f49b1773d21"
},
{
"type": "validator",
"stepName": "Validator (JSON Schema)",
"validationSpec": {
"schema": "http://json-schema.org/draft-04/schema#",
"additionalProperties": false,
"definitions": {},
"id": "validate-schema-form",
"properties": {
"payload": {
"type": "object",
"properties": {
"tituloErro": {
"type": "string"
},
"mensagem": {
"type": "string"
},
"pipelineName": {
"type": "string"
},
"etapaIntegracao": {
"type": "string"
},
"dataHora": {
"type": "number"
},
"criticidade": {
"type": "number"
},
"tempoEsperaAlerta": {
"type": "number"
}
},
"required": [
"tituloErro",
"mensagem",
"pipelineName",
"lastPipelineKey",
"etapaIntegracao",
"dataHora",
"criticidade",
"tempoEsperaAlerta"
]
}
},
"required": [
"payload"
],
"type": "object"
},
"id": "0923c0da-1662-4ed8-a90d-62b1c64bf45a"
},
{
"type": "session-management",
"stepName": "Put payload",
"operation": "PUT",
"sessionType": "LOCAL",
"scoped": false,
"fields": [
"payload"
],
"id": "a0fba1b5-66a7-4d85-b19b-673063d528db"
},
{
"type": "connector",
"name": "object-store-connector",
"accountLabel": "dgb-internal-object-store-account",
"stepName": "Find notification-store",
"params": {
"operation": "FIND_BY_QUERY",
"objectStore": "notification-store",
"expireAfterSeconds": 0,
"query": "{\n \"pipelineName\": {{ message.payload.pipelineName }},\n \"mensagem\": {{ message.payload.mensagem }},\n \"etapaIntegracao\": {{ message.payload.etapaIntegracao }}\n}",
"limit": "0",
"skip": "0",
"sort": "{}",
"unique": true,
"isolated": false,
"upsert": false,
"failOnError": false
},
"id": "419107c2-aa79-4c11-80a1-b6d032824659"
},
{
"type": "choice",
"stepName": "Choice",
"when": [
{
"target": "Success Find notificarion-store (1)",
"jsonPath": "$.[?(@.rowCount > 0)]",
"__documentation__": ""
}
],
"otherwise": "Fail Find notificarion-store (1)",
"id": "1a914487-be66-4c4f-8268-d20476c33d37"
}
],
"Success Find notificarion-store (1)": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Success Find notification-store",
"params": {
"logLevel": "INFO",
"message": "Success Find notification-store"
},
"id": "6cd53565-b6c5-4fe7-945d-5eaf21287072"
},
{
"type": "transformer",
"stepName": "Increment qtdeOcorrencias",
"transformSpec": [
{
"operation": "shift",
"spec": {
"data": {
"0": {
"_oId": "_oId",
"qtdeOcorrencias": "qtdeOcorrencias"
}
}
}
}
],
"id": "93a0465b-a939-40a2-af3e-e5b32bda3061"
},
{
"type": "session-management",
"stepName": "Get payload",
"operation": "GET",
"sessionType": "LOCAL",
"scoped": false,
"fields": [
"payload"
],
"id": "b5f6d727-72ea-4272-9c2c-6cc0cde483b9"
},
{
"type": "connector",
"name": "object-store-connector",
"accountLabel": "dgb-internal-object-store-account",
"stepName": "Instert notification-store",
"params": {
"operation": "UPDATE",
"objectStore": "notification-store",
"objectId": "{{ message._oId }}",
"query": "",
"document": "{\n $set:{\n \"lastPipelineKey\": {{ message.payload.lastPipelineKey }},\n \"dataHora\": {{ message.payload.dataHora }},\n \"qtdeOcorrencias\": {{ TOINT(SUM(message.qtdeOcorrencias,1)) }}\n }\n}",
"unique": true,
"isolated": false,
"upsert": false,
"failOnError": false
},
"id": "4015ccfe-df27-4554-8cdc-4fc5311f8bd3"
},
{
"type": "connector",
"name": "assert-connector-v2",
"stepName": "Assert V2",
"params": {
"condition": "{{ GREATERTHAN( message.updateCount, 0) }}",
"errorMessage": "Error to Update Object Store: notification-store",
"internalErrorMessage": "Internal Error",
"errorCode": 500,
"failOnError": true
},
"id": "4f6fc79d-72f9-41e9-bfa5-1f8a81d4850b"
},
{
"name": "json-generator-connector",
"type": "connector",
"stepName": "JSON Generator",
"params": {
"json": "{\n \"message\": \"Success to Update notification-store.\"\n}",
"failOnError": false
},
"id": "65ecf8db-6aaa-4409-b032-57a1450c69a8"
}
],
"Fail Find notificarion-store (1)": [
{
"type": "connector",
"name": "log-connector",
"stepName": "Fail Find notification-store",
"params": {
"logLevel": "INFO",
"message": "Failed Find notification-store"
},
"id": "a948890b-e52a-4bee-854f-294a9f14528d"
},
{
"type": "session-management",
"stepName": "Get payload",
"operation": "GET",
"sessionType": "LOCAL",
"scoped": false,
"fields": [
"payload"
],
"id": "0d4065ac-2801-4c50-94f9-c6224d4fc272"
},
{
"type": "connector",
"name": "json-transformer-connector",
"stepName": "Calcule limitAlert (in Minutes)",
"params": {
"actions": "[{\"type\":\"edit\",\"desc\":\"Calculate limitAlert\",\"props\":[{\"path\":\"payload\",\"keyValueStringEdit\":\"{\\\"limitAlert\\\":\\\"{{ SUMDATE(message.payload.dataHora, \\\\\\\"MINUTE\\\\\\\", message.payload.tempoEsperaAlerta, \\\\\\\"UTC\\\\\\\") }}\\\"}\"}]}]",
"failOnError": false
},
"id": "9ddf92c8-b8c4-4599-8238-8aea39d8ae9a"
},
{
"type": "connector",
"name": "object-store-connector",
"accountLabel": "dgb-internal-object-store-account",
"stepName": "Instert notification-store",
"params": {
"operation": "INSERT",
"objectStore": "notification-store",
"objectId": "{{ UUID() }}",
"document": "{{ message.payload }}",
"unique": true,
"isolated": false,
"upsert": false,
"failOnError": false
},
"id": "15714b58-3223-47bc-b0a2-acdbe7f9f00c"
},
{
"type": "connector",
"name": "assert-connector-v2",
"stepName": "Assert V2",
"params": {
"condition": "{{ GREATERTHAN( message.updateCount, 0) }}",
"errorMessage": "Error to Update Object Store: notification-store",
"internalErrorMessage": "Internal Error",
"errorCode": 500,
"failOnError": true
},
"id": "5415eeb8-1242-49d9-b95c-e192f7ea2e9b"
},
{
"name": "json-generator-connector",
"type": "connector",
"stepName": "JSON Generator",
"params": {
"json": "{\n \"message\": \"Success to Insert notification-store.\"\n}",
"failOnError": false
},
"id": "614f85c5-4137-4a93-926e-89b8c0238cc3"
}
],
"disconnected-root:a5dc82f0-714d-46f8-82ae-d5305557775b": [
{
"name": "json-generator-connector",
"type": "connector",
"stepName": "Payload",
"params": {
"json": "{\n \"tituloErro\": \"Exemplo: Falha de integração de produtos\",\n \"mensagem\": \"código de erro + mensagem\",\n \"pipelineName\": \"nome do pipeline2\",\n \"lastPipelineKey\": \"pipeline key\",\n \"etapaIntegracao\": \"Qual etapa do fluxo ocorreu o erro\",\n \"dataHora\": {{ NOW() }},\n \"criticidade\": 3,\n \"tempoEsperaAlerta\": 60,\n \"servicenow\": {\n \"variables\": {\n \"assignment_group\": \"\",\n \"u_type_closure\": \"\",\n \"urgency\": \"\",\n \"cmdb_ci\": \"\",\n \"business_service\": \"\",\n \"subcategory\": \"\"\n }\n },\n \"dynatrace\": {\n \"timeout\": \"\",\n \"properties\": {\n \"step\": \"\"\n }\n }\n}",
"failOnError": false
},
"id": "78a22097-4485-4810-aa04-fc488568751c"
}
]
}
}
```
## Reprocessing strategy and notification rules
* **Avoid duplication:** Repeated messages are not allowed in the same pipeline within the defined interval.
* **Updating existing records:** If the key already exists, the occurrence counter is incremented.
* **Shipping time:** The publisher defines the waiting time.
* **Criticality defines the destination:**
* **Level 1:** Call only (ex: ServiceNow)
* **Level 2:** Alert only (ex: Dynatrace)
* **Level 3:** Alert + call (ex: Dynatrace and ServiceNow)
## Observability and monitoring
To ensure the reliability of notifications, it’s recommended:
* **Structured logging** to track events and errors.
* **Metrics** such as success rate and response time.
* **Alerts** for recurring failures.
## Conclusion
This notification model ensures **reliable and scalable delivery of error messages** in event-driven architectures. With Digibee, it’s possible to implement this model in a flexible and integrated way with existing systems, allowing automation and complete traceability of critical notifications.
---
# Agent Instructions: Querying This Documentation
If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.
Perform an HTTP GET request on the current page URL with the `ask` query parameter:
```
GET https://docs.digibee.com/documentation/resources/best-practices/notification-model-in-event-driven-integrations.md?ask=
```
The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.
Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
